Boeing A-4 Skyhawk

Origin
USA
Type
carrierborne attack fighter-bomber
Max Speed
515 kt / 593 mph
Max Range
3,307 km / 2,055 miles
Dimensions
span 8.38 m / 27 ft 6 in length 12.27 m / 40 ft 3.25 in height 4.57 m / 14 ft 11 in
Weight
empty 4,739 kg / 10,448 lb max. take-off 12,437 kg / 27,420 lb
Powerplant
one 4218-kg (9,300-lb) dry thrust Pratt & Whitney J52-P-8A turbojet
Armament
two 20-mm Mk 12 cannon with 200 rounds per gun; provision for 2268 kg (5,000 Ib) of disposable stores, including ASMs. bombs, cluster bombs, dispenser weapons, rocket-launcher pods, cannon pods, drop tanks and ECM pods, carried on five external hardpoints
Operators:
Argentina, Brazil, Indonesia, Israel, Singapore

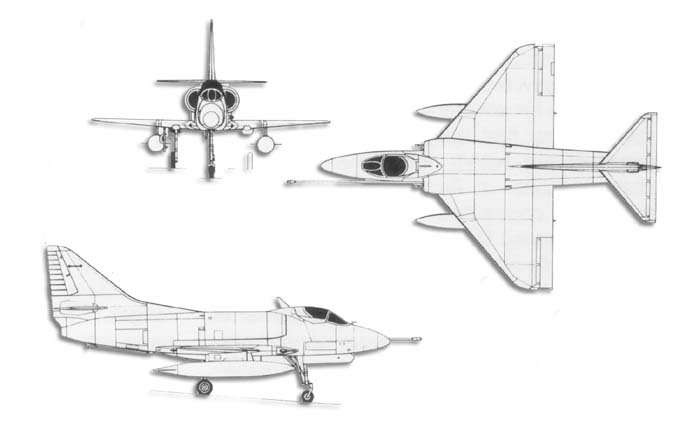

Line Drawing
