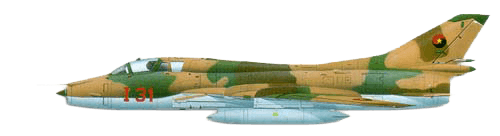

Sukhoi Su-17/20/22 Fitter
single-seat ground-attack fighter
Specifications
- Origin
- Russia
- Type
- single-seat ground-attack fighter
- Maximum Speed
- 1,198 kt / 1.380 mph
- Maximum Range
- 675 km / 419 miles
- Dimensions
- span 13.80 m / 45 ft 3 in
length 18.75 m / 61 ft 6.2 in
height 5.00 m / 16 ft 5 in - Weight
- empty 95,00kg / 20,944 lb
max. take-off 19500 kg /
42,990 lb - Powerplant
- one 11250-kg (24,802-lb) afterburning thrust Lyul'ka AL-21F-3 turbojet
Armament
two 30-mm NR-30 with 80 rounds per gun; provision for 4250 kg (9,370 Ib) of disposable stores, including tactical nuclear weapons, AAMs, ASMs, guided bombs, bombs, cluster bombs, dispenser weapons, napalm tanks, large-calibre rockets, rocket-launcher pods. cannon pods, drop tanks and ECM pods, carried on nine external hardpoints
