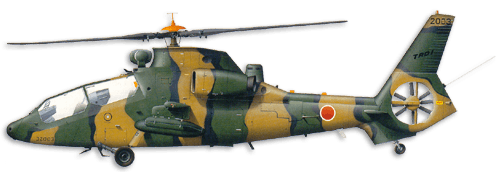

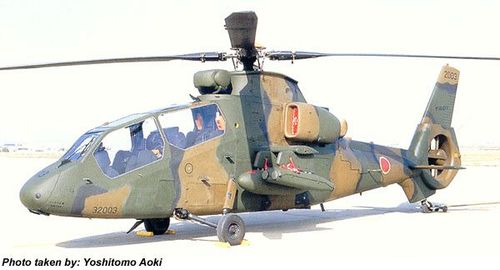

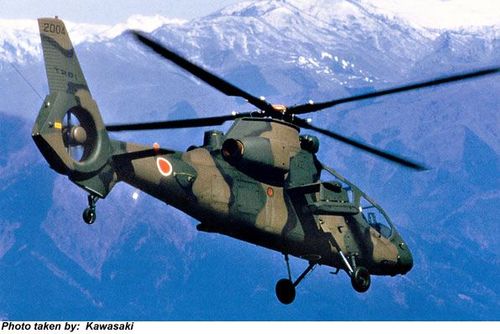

Kawasaki OH-1
two-seat light battle and surveillance helicopter
Specifications
- Origin
- Japan
- Type
- two-seat light battle and surveillance helicopter
- Maximum Speed
- 168 mph/270 km/h
- Maximum Range
- 342 miles/550 km
- Dimensions
- rotor diameter 38 ft 3 in/11.60 m, length 39 ft 4 in/12.0 m, height 12 ft 6 in/3.80 m
- Weight
- empty weight 5,401 lbs/2,450 kg, maximum take-off weight 8,818 lbs/4,000 kg
- Powerplant
- two Mitsubishi TS1-10 gas turbine engines each with 888 SHP performance
Armament
four short-range Toshiba Type 91 air-to-air infrared missiles on two pylons on the sides of the fuselage as well as two additional stations for additional weapons.
